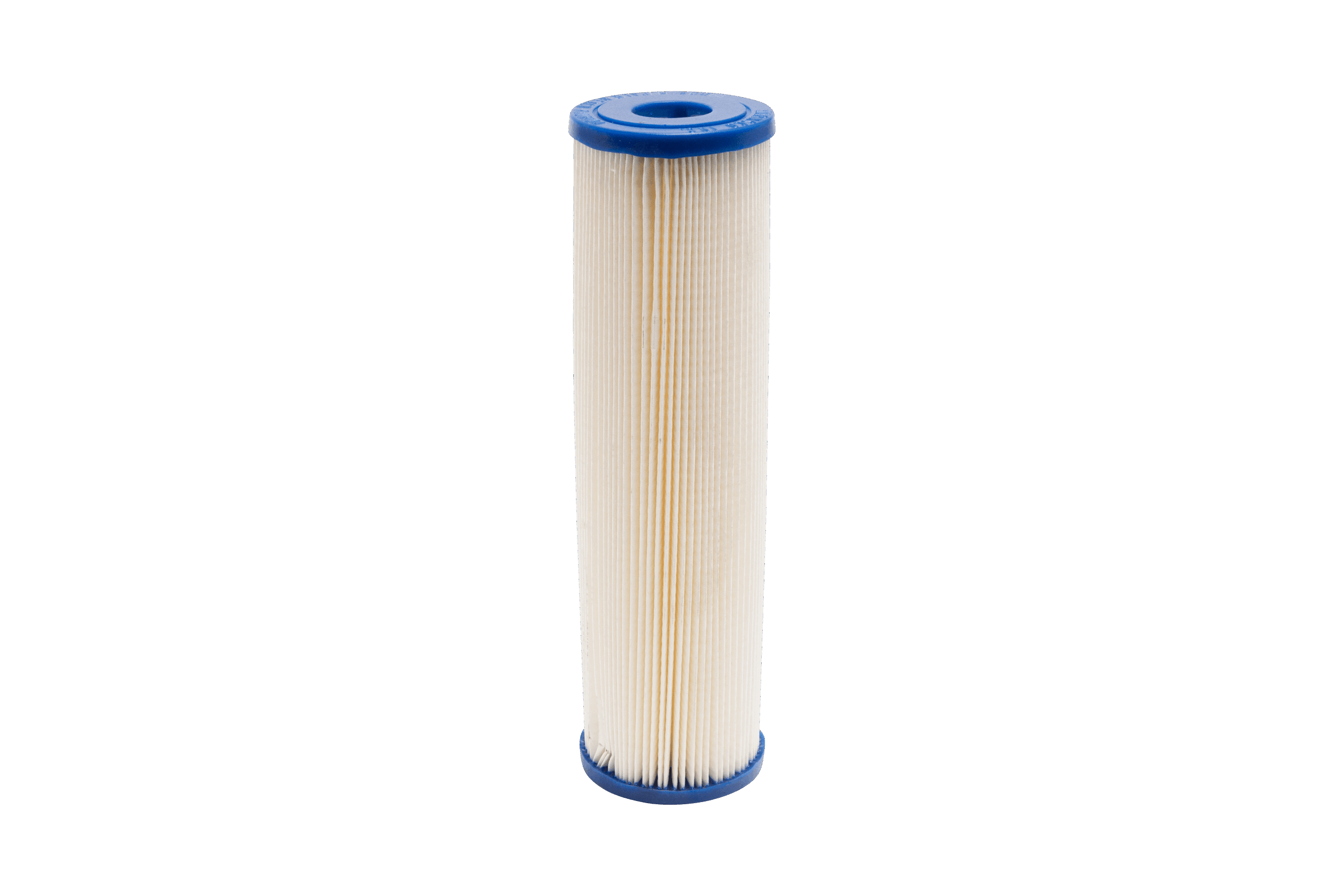

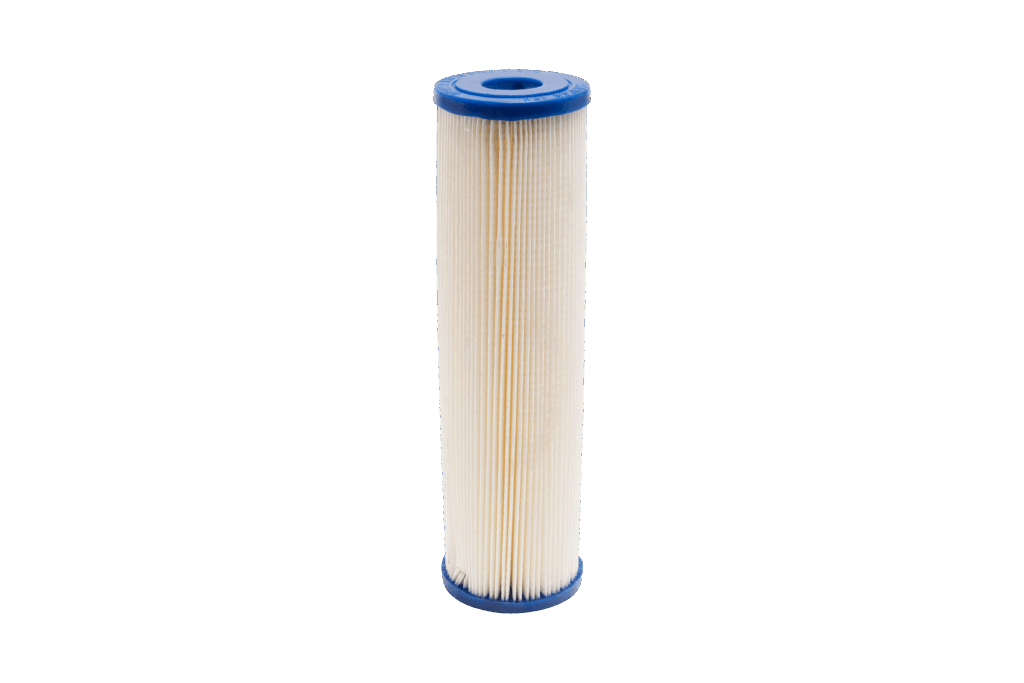

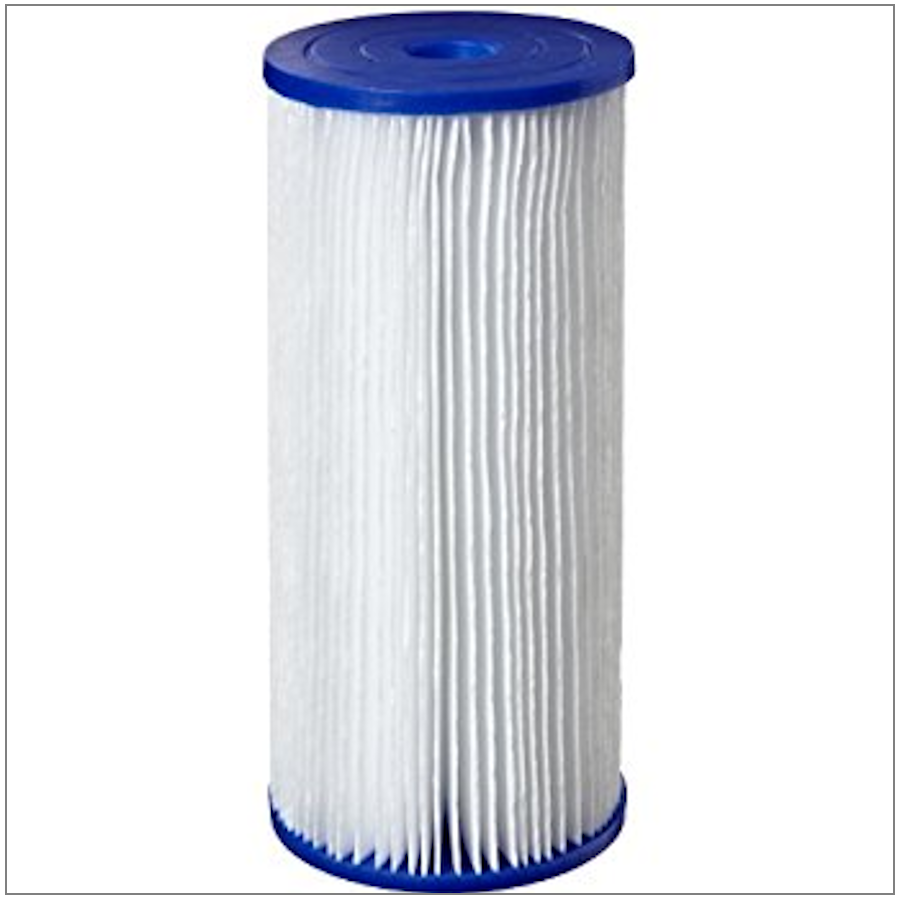

Although the housing might look simple—typically a perforated core wrapped by a steel or plastic shell—the magic happens in the folds. Each pleat behaves like a mini-filter, intercepting particles through direct straining and diffusion. This design crams up to fifteen times more media into a single cartridge compared to a flat-sheet or depth filter, so contaminants have far more opportunity to lodge themselves before breakthrough occurs. In practice, this means you can push higher flow rates without suffering the steep pressure spikes that plague other filter types, translating to smoother operations and fewer emergency shutdowns [2].

Manufacturers often fine-tune pleat geometry—pleat height, pitch, and angle—to balance dirt-holding capacity with hydraulic efficiency. A tight pleat pitch boosts surface area but runs the risk of trapping air pockets; a wider pitch eases flow but reduces capacity. By matching media selection and pleat design to specific process demands—whether it’s high-viscosity fluid pretreatment or sterile final filtration—engineers achieve an optimal compromise between throughput and longevity [5].

Filter Media Options For Pleated Cartridges

Choosing the right pleated filter media feels like picking the perfect sponge—you’ll notice the difference the instant water starts flowing through.

The world of pleated cartridges offers a spectrum of media, each with its strengths. Polypropylene reigns supreme for chemical resistance and affordability, making it the go-to in food, beverage, and general-purpose water pretreatment. Polyester steps in when higher temperature tolerance or hydrophobicity is required, as in oil separation tasks. Glass fiber, prized for its rigidity and fine particulate capture, shines in heavy-duty applications such as paint overspray recovery and process water filtration. For the most stringent demands—think sterile pharmaceutical or biotech lines—membrane media like nylon, PES, PTFE, or PVDF deliver sub-micron retention and exceptional chemical compatibility [3].

When selecting a cartridge, consider not only media type but also pore size and surface treatment. For instance, those tackling fine particulates might opt for an absolute-rated membrane, whereas coarser, nominal ratings serve well as polishers or pre-filters in multi-stage systems like inline water filtration. Ultimately, the correct media choice extends run times, minimizes pressure penalties, and ensures contaminants stay locked within the folds rather than sneaking downstream [1].

How Pleated Filter Cartridges Work

Pleated cartridges transform a simple sheet of media into a labyrinth of pockets and channels that double as sieves, diffusers, and adsorption zones. As fluid enters the housing, larger particles are intercepted at the pleat entrances, while smaller ones meander through the fiber matrix, colliding and sticking by diffusion. Electrostatic forces in certain media variants enhance capture efficiency, especially for sub-micron dust or microbial cells. This multipronged approach—combining direct straining, diffusion, and sometimes electrostatic attraction—ensures broad-spectrum removal without choking off flow too quickly [4].

Inside the pleats, flow channels remain open longer than in packed-bed or depth filters, because dirt accumulates on the outer surfaces of the folds first. As each pleat gradually captures debris, the remaining clean sections keep the water racing through, flattening out what would otherwise be a sharp pressure spike. When pressure does climb beyond the system’s setpoint, it’s time for a swap—but with pleated media, that often isn’t for weeks or months, not days. For deeper insight into how particle dimensions influence this balance, see our analysis on micron-scale filtration differences.

Balancing Flow Rates And Pressure Drops In Pleated Filter Cartridges

One of the clearest benefits of pleated cartridges is their ability to maintain high flow rates while keeping pressure drops surprisingly low—an essential factor for energy efficiency and pump longevity. By folding more media into the same housing volume, you spread particulate loading over a larger area, which delays the onset of backpressure. Studies demonstrate that at equivalent flow rates, pleated designs can reduce inlet pressure by up to 20% compared to depth filters, smoothing out operations and trimming energy bills [1].

I recall talking to a water-treatment engineer who noted their plant’s pleated cartridges cut service interruptions in half because the cartridges neither clogged prematurely nor spiked pressures unexpectedly—so pumps ran steadier, and operators could schedule maintenance instead of firefighting leaks [2]. When you align your chosen micron rating with process demands—and avoid oversizing or undersizing—you’ll find that pleated cartridges hit the sweet spot between throughput and purity.

Comparisons with melt-blown or sintered filters consistently show pleated designs preserving a flatter pressure profile over their service life. That means fewer pump alarms, less unexpected downtime, and a smoother ride for delicate downstream equipment. To fine-tune that balance, always match the filter’s rated flow to your system’s peak demand and consult performance curves from the manufacturer.

Customization Options For Pleated Filter Cartridges

Tailoring a pleated cartridge to your process can feel like commissioning bespoke gear. Beyond media selection and pleat count, you get to pick end-cap styles, gasket materials, and even pleat geometry designed for specific pressure, temperature, or compatibility requirements.

For example, a dairy plant I worked with switched to a hydrophilic polyester cartridge with EPDM gaskets, eliminating protein fouling and halving downtime. In contrast, chemical manufacturers handling solvents lean toward PTFE or PVDF media with silicone seals, ensuring nothing degrades even under high-temperature loops [3]. By specifying electrostatically enhanced pleats, some operations boost microbe and dust capture without hiking pressure drop, making them perfect for compressed-air lines or paint booths [5].

Tips and Strategies For Properly Maintaining Pleated Filter Cartridges

Routine care can stretch a pleated cartridge’s lifespan beyond what you’d expect. First, inspect the pleats visually every month or so, looking for wear, tears, or flattened sections that hint at uneven flow. A gentle rinse with cool water helps dislodge loose debris, but steer clear of hot water unless your media—like PTFE or nylon—can handle it [4]. Checking and lightly lubricating O-rings with food-grade silicone ensures you won’t come back to a messy leak in the middle of a production run.

Monitor your system’s pressure gauges religiously. A rise of 10–15 psi above the normal operating differential signals it’s time for a fresh cartridge, preventing sudden clogs that can stall pumps or burst hoses. Keep a spare housing seal kit and cartridge on hand, storing them in a cool, dry space so you avoid last-minute scavenger hunts when changeout day arrives.

When stubborn fouling occurs—say, oil smears or sticky biofilms—consider soaking cartridges in a mild detergent or a manufacturer-recommended solution matched to your media’s chemistry. After an adequate soak, a soft brush can coax out particles without ripping pleats apart. And if in doubt, swap in a new cartridge; the slight cost often pales compared to the downtime of scrubbing housings or battling contamination.

Real-World Applications of Pleated Filter Cartridges

Pleated cartridges have quietly revolutionized processes across countless industries. In a craft brewery in Oregon, swapping depth filters for pleated cartridges cut downtime by 40%—brewers now enjoy more consistent clarity and fewer mid-batch changes, freeing them to experiment with novel hops rather than fuss over filtration [1].

In biopharmaceutical plants, sterile-grade PES cartridges capture sub-micron contaminants and bacteria with near-absolute efficiency, extending runs by 25% and slashing validation headaches. Scientists laud the gentle flow profiles that protect delicate vaccines and injectables without sacrificing throughput [2].

Engineers at power stations and chemical facilities leverage hydrophobic pleated cartridges in high-temperature steam loops, achieving stable flows and cutting replacement costs by 30%. Even wastewater treatment benefits, borrowing insights from comprehensive water purification to meet stringent discharge standards with fewer filter swaps and lower chemical usage.

Troubleshooting Common Issues With Pleated Filter Cartridges

When a pleated cartridge chokes off flow or spits debris downstream, the culprit often lies in the folds. Clogging and elevated pressure drops occur as particles build up in pleat valleys, while chemical attacks on fibers can weaken pleat walls, leading to collapse or fiber shedding [2]. Misaligned end caps or worn gaskets may allow bypass, letting unfiltered fluid sneak past the media [3].

Start by checking inlet and outlet pressures—any jump beyond 10–15 psi over baseline suggests saturation or blockage. A quick housing inspection under the cap, combined with a gentle shake to dislodge loose fibers, reveals mechanical issues early. If performance doesn’t rebound after swapping a fresh cartridge, inspect O-rings for cracks, clean the housing, and confirm proper cartridge seating. In complex loops, pairing pleated cartridges with upstream sediment or carbon pre-filters can lighten the load and extend overall service life.

Final Insights On Pleated Filter Cartridges

With a pleated design that offers up to 40% more active surface area than depth filters, these cartridges consistently deliver high contaminant removal rates and longer lifespans [1], [2].

Having steered countless clients toward pleated solutions, I’ve seen firsthand how these cartridges bring peace of mind—knowing your system hums along at peak efficiency and that every drop leaving your operation is as pure as intended. For a deeper dive into how particle size influences performance, check out our guide on 5-micron vs. 20-micron filter usage and unlock the insights you need to choose the perfect cartridge for your process.
